CAD

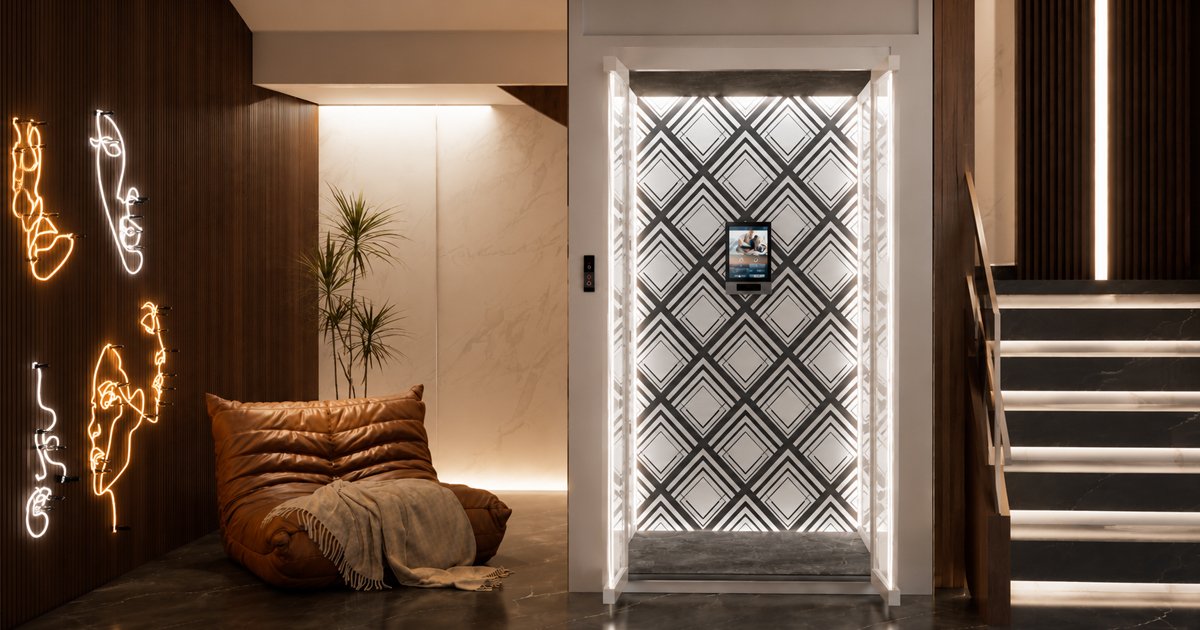

Akira - Cube

Residential Home Elevator

Our MRL gearless home elevator features a compact design that maximizes living space while delivering smooth, quiet performance.
Cube

Load: 320 – 400 – 450 – 630 kg
Capacity: 4 – 5, 6 – 8 persons
Speed: 1 m/s
Maximum Travel: 40m
Maximum Floor Served: 14 floors
Drive System Regulated Gearless
Door Height: 2,000 / 2,100 mm
Car Dimensions: Standard
Internal Car Height: 2,100 /2,200 mm

SKP File
PDF File

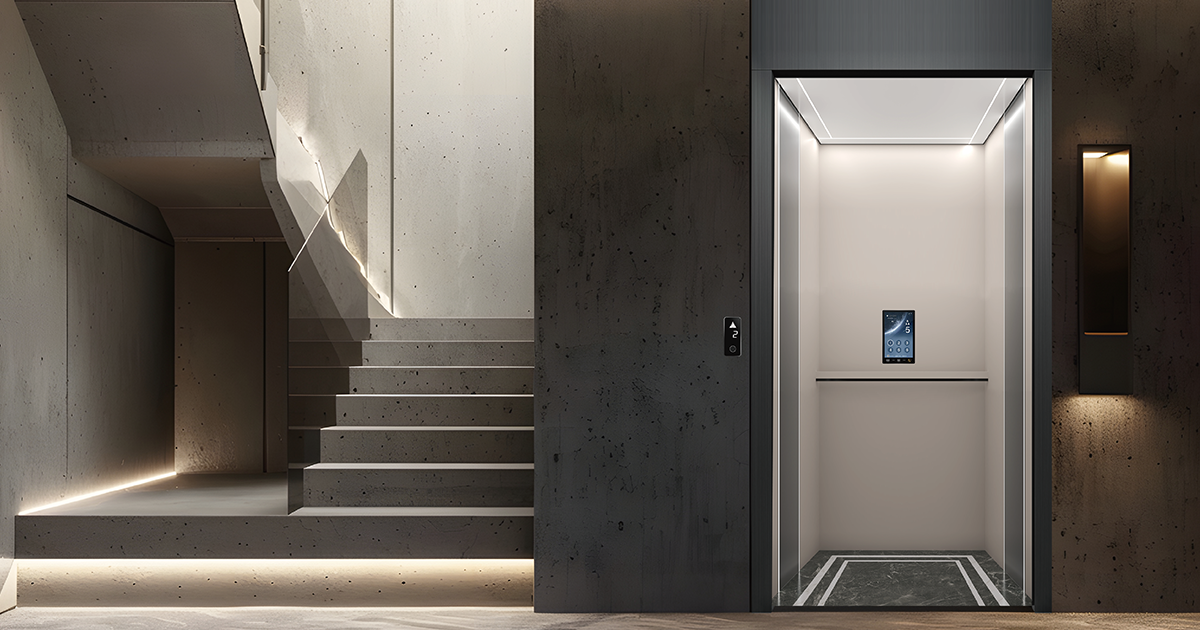

M300

Machine Room Less Gearless Drive Elevators

Our machine has one of the highest energy efficiencies in the market, reaching 90% performance.

M300 - Essentia

Load: 320 – 400 – 450 – 630 kg
Capacity: 4 – 5, 6 – 8 persons
Speed: 1 m/s
Maximum Travel: 40m
Maximum Floor Served: 14 floors
Drive System Regulated Gearless
Door Height: 2,000 / 2,100 mm
Car Dimensions: Standard
Internal Car Height: 2,100 /2,200 mm

SKP File
PDF File

M300 - Smart

Load: 320 – 1000 kg
Capacity: 4 – 13 persons
Speed: 1 – 1.6 m/s
Maximum Travel: 50 – 60m
Maximum Floor Served: 16 – 21 floors
Drive System Regulated Gearless
Door Height: 2,000 / 2,100 / 2,200 / 2,300 mm
Car Dimensions: Parametric
Internal Car Height: 2000 / 2,100 / 2,200 / 2,300 mm

SKP File
PDF File

M300 - Rise

Load: 630 – 1600 kg
Capacity: 8 – 21 persons
Speed: 1.75 – 2.25 m/s
Maximum Travel: 50 – 130m
Maximum Floor Served: 64 floors
Drive System Regulated Gearless
Door Height: 2,000 / 2,100 / 2,200 / 2,300 mm
Car Dimensions: Parametric
Internal Car Height: 2,100 / 2,200 / 2,300 / 2,400 mm

CAD File
PDF File

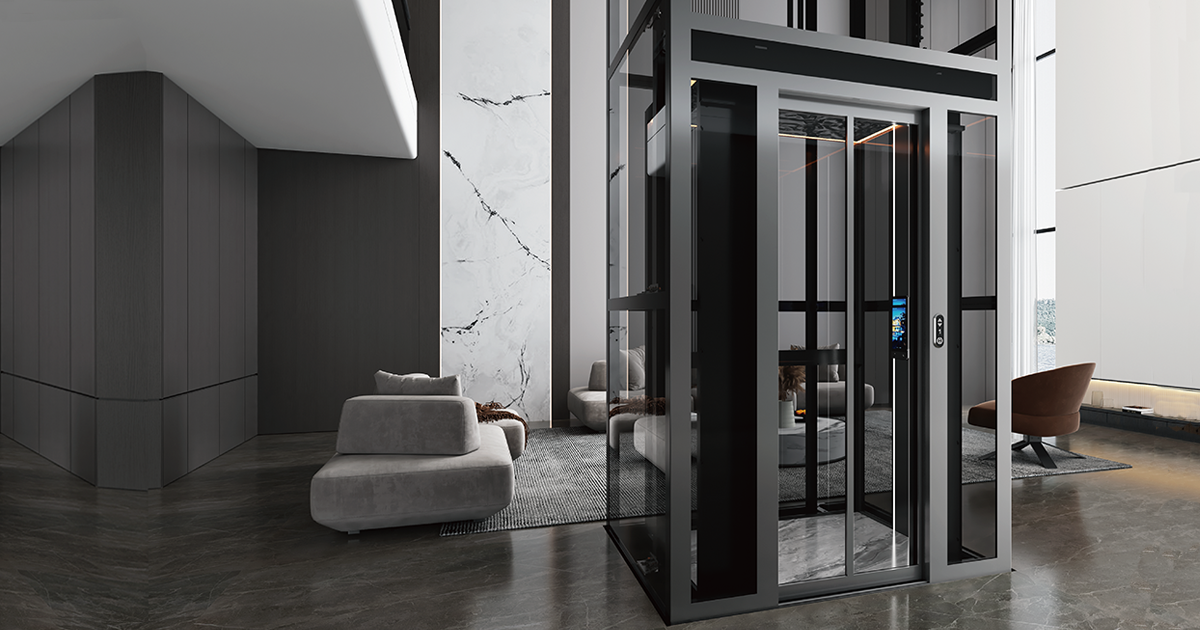

S1

Machine Room Above Gearless Drive Elevators

Designed with accessibility in mind, the lift provides a safe, comfortable, and user-friendly experience for everyone in the home.

S1 - Smart

Load: 320 – 1000 kg
Capacity: 4 – 13 persons
Speed: 1 – 1.6 m/s
Maximum Travel: 50 – 60m
Maximum Floor Served: 16 – 21 floors
Drive System Regulated Gearless
Door Height: 2,000 / 2,100 / 2,200 / 2,300 mm
Car Dimensions: Parametric
Internal Car Height: 2000 / 2,100 / 2,200 / 2,300 mm

SKP File
PDF File

S1 - Rise

Load: 630 – 1600 kg
Capacity: 8 – 21 persons
Speed: 1.75 – 2.25 m/s
Maximum Travel: 50 – 130m
Maximum Floor Served: 64 floors
Drive System Regulated Gearless
Door Height: 2,000 / 2,100 / 2,200 / 2,300 mm
Car Dimensions: Parametric
Internal Car Height: 2,100 / 2,200 / 2,300 / 2,400 mm

CAD File
PDF File

CAD File
PDF File
